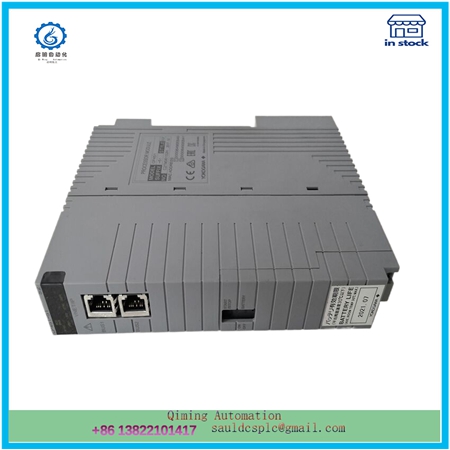

⚙️ Yokogawa CP451-51 Processor Module
📖 Product Overview
The Yokogawa CP451-51 is a high-performance processor module designed for integration into the CENTUM VP Distributed Control System (DCS). Serving as the central processing unit (CPU) for the Field Control Unit (FCU), the CP451-51 executes complex control algorithms, manages I/O operations, and ensures seamless communication within the control network.
This module is engineered to meet the stringent requirements of industries such as oil and gas, petrochemicals, power generation, and chemical processing, where reliability, scalability, and real-time performance are paramount.
📊 Technical Specifications
| Feature | Specification |
|---|---|
| Model | CP451-51 (Part No. 324400) |
| Product Type | Processor Module for CENTUM VP DCS |
| System Role | Central Processing Unit (CPU) for Field Control Unit (FCU) |
| Processor Speed | 20 MHz |
| Memory | 32 KB RAM, 16 KB Flash Memory |
| Operating System | Proprietary Yokogawa OS |
| Power Supply | 24 V DC ±10% |
| Input Voltage | 24 V DC |
| Output Voltage | 5 V DC |
| Communication Interface | RS-485 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 10.2 cm x 3.8 cm x 10.2 cm |
| Weight | 0.3 kg |
| Compliance Standards | CE, ISO |
🔧 Installation & Maintenance
- Mounting: The CP451-51 module is designed for snap-on mounting onto a horizontal dual-rail, facilitating easy installation and replacement within the FCU rack.
- Wiring: Utilize screw clamp terminals for secure connections to power supply and communication interfaces. Ensure correct wiring according to the module’s configuration.
- Power Supply: Connect a 24 V DC power source to the module, observing proper polarity and voltage ratings to ensure stable operation.
- Communication Setup: Configure the RS-485 communication interface for seamless integration with other modules and devices within the CENTUM VP system.
- Diagnostics: Monitor the module’s status indicators to assess operational health. Utilize built-in diagnostic features to identify and troubleshoot issues.
- Maintenance: Perform regular inspections and maintenance to ensure optimal performance. The hot-swap capability allows for module replacement without system shutdown.
🌐 Industrial Applications
The CP451-51 processor module is integral to various industrial applications, including:
- Oil & Gas: Managing complex control loops and ensuring safe and efficient operations in upstream and downstream processes.
- Petrochemicals: Overseeing chemical reactions and maintaining product quality through precise control and monitoring.
- Power Generation: Regulating turbine operations, boiler systems, and electrical distribution to ensure stable power supply.
- Chemical Processing: Monitoring and controlling chemical reactions, temperature, pressure, and flow to maintain process stability.
Its robust design and high processing capabilities make it a reliable choice for critical control applications in these industries.
🔗 Additional Resources
For more information on the CP451-51 processor module and related products:
📑 Similar Product Recommendations
| Model | Description | Application |
|---|---|---|
| CP451-10 | Entry-level processor module | Small-scale control systems |
| CP451-11 | Standard processor module | General-purpose control applications |
| CP451-50 | Enhanced processor module with additional features | Advanced control systems |
| CP451-E0 | Processor module with extended environmental options | Harsh environment applications |
| CP461-51 | High-performance processor module | Complex and large-scale control systems |
Should you require further details or assistance with selecting the appropriate processor module for your application, feel free to reach out.
