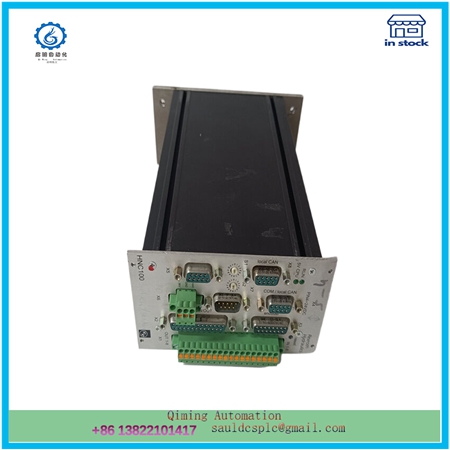

📘 Bosch Rexroth VT-HNC100-1-23 W-08-0-0 R900955334 Digital Axis Controller
The Bosch Rexroth VT-HNC100-1-23 W-08-0-0 R900955334 is a high-performance digital axis controller designed for precise and dynamic motion control in industrial automation systems. It is part of the VT-HNC100 series, offering advanced features for controlling hydraulic and electric drives in various applications.
⚙️ Product Overview
The VT-HNC100-1-23 W-08-0-0 R900955334 is engineered to provide accurate control over a single axis, ensuring optimal performance in demanding environments. It supports multiple communication protocols, including PROFIBUS DP, allowing seamless integration into existing automation networks.
📊 Datasheet Parameters
| Parameter | Description |
|---|---|
| Model | VT-HNC100-1-23 W-08-0-0 R900955334 |
| Series | VT-HNC100 Digital Axis Controller |
| Axis Control | Single axis |
| Component Series | 23 |
| Housing | Wall-mountable |
| Inputs/Outputs | 8 digital inputs/outputs |
| Communication | PROFIBUS DP |
| Analog Inputs | 4 analog inputs (4–20 mA) |
| Analog Outputs | 4 analog outputs (0–10 V) |
| Digital Inputs | 8 digital inputs |
| Digital Outputs | 8 digital outputs |
| Power Supply | 24 VDC ±10% |
| Power Consumption | Approximately 8 W |
| Operating Temperature | 0°C to +50°C |
| Humidity | Up to 85% relative humidity |
| Vibration Resistance | Meets IEC standards |
| Safety Features | Safe Torque Off (STO) |
🔑 Key Features
- High Precision Control: Delivers accurate position, velocity, and pressure control for hydraulic and electric drives.
- Flexible Integration: Supports PROFIBUS DP communication for easy integration into existing automation networks.
- Robust Design: Designed to withstand harsh industrial environments with resistance to vibration and humidity.
- Advanced Safety: Equipped with Safe Torque Off (STO) functionality to enhance operational safety.
- User-Friendly Configuration: Facilitates easy parameterization and diagnostics through compatible software tools.
🏭 Applications
The VT-HNC100-1-23 W-08-0-0 R900955334 is suitable for various industrial applications, including:
- Machine Tools: Provides precise control for CNC machines and other automated equipment.
- Plastics Processing: Ensures accurate and reliable operation in plastic molding and extrusion processes.
- Presses: Offers dynamic control for hydraulic presses and stamping machines.
- Transfer Lines: Manages synchronized motion in automated production lines.
- Rail-Bound Vehicles: Controls motion in automated rail transport systems.
🔧 Installation & Maintenance
Installation
- Mounting: Securely mount the controller on a wall or suitable surface using the provided mounting brackets.
- Wiring: Connect the power supply and communication interfaces as per the wiring diagram provided in the user manual.
- Configuration: Use compatible software tools to configure parameters and integrate the controller into the automation system.
Maintenance
- Regular Inspection: Periodically check for signs of wear or damage to connectors and cables.
- Cleaning: Keep the controller and surrounding area clean to prevent dust accumulation.
- Software Updates: Ensure that the controller firmware is up to date to maintain compatibility and performance.
🌐 Useful Links
- Explore industrial automation solutions: https://www.stardcsplc.com/
- Browse compatible modules and spares: https://www.stardcsplc.com/
📌 Technical Benefits
- Enhanced Performance: Provides high-speed, precise control for demanding applications.
- Flexible Integration: Supports standard communication protocols for easy system integration.
- Robust Construction: Designed to operate reliably in challenging industrial environments.
- Advanced Safety Features: Incorporates safety functionalities to protect both equipment and personnel.
📑 Recommended Similar Models
| Model Number | Description | Availability |
|---|---|---|
| VT-HNC100-1-24 | Digital axis controller with enhanced features | ✔ |
| VT-HNC200-1-23 | Advanced digital axis controller for multi-axis systems | ✔ |
| VT-HNC100-2-23 | Dual-axis controller for complex motion control applications | ✔ |
| VT-HNC100-1-22 | Compact digital axis controller for space-constrained installations | ✔ |
This datasheet provides a detailed overview of the Bosch Rexroth VT-HNC100-1-23 W-08-0-0 R900955334 digital axis controller, highlighting its technical specifications, key features, applications, and maintenance guidelines. For further information or to explore additional products, please visit the provided links.
