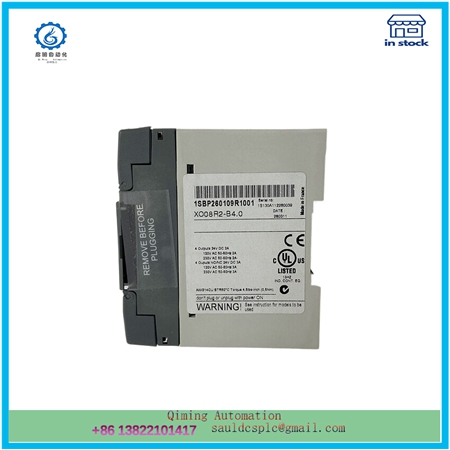

📘 ABB XO08R2 1SBP260109R1001 Relay Output Extension Module
The ABB XO08R2 1SBP260109R1001 is a high-performance relay output extension module designed to enhance the capabilities of ABB’s industrial automation systems. This module is particularly suitable for applications requiring precise control and monitoring of industrial processes.
🔧 Key Specifications
| Specification | Details |
|---|---|
| Model | XO08R2 1SBP260109R1001 |
| Manufacturer | ABB |
| Type | Relay Output Extension Module |
| Relay Type | SPDT (Single Pole Double Throw) |
| Contact Rating | 10A @ 250VAC, 16A @ 125VAC |
| Operating Voltage | DC 24V to 230V AC |
| Operating Current | Up to 10A |
| Operating Temperature | -25°C to +70°C |
| Enclosure Type | IP20 |
| Dimensions | 90mm x 80mm x 51mm |
| Weight | 0.12kg |
⚙️ Product Overview
The ABB XO08R2 1SBP260109R1001 is engineered to provide reliable and efficient relay output control in industrial automation systems. It features eight individually isolated relay channels, each capable of handling up to 10A, ensuring robust performance in demanding environments.
Designed for seamless integration, this module supports a wide operating voltage range from 24V DC to 230V AC, making it versatile for various industrial applications. Its compact design and IP20 enclosure ensure durability and ease of installation in standard control panels.
The module’s SPDT relay configuration allows for flexible switching operations, accommodating diverse control requirements. With a contact rating of 10A at 250VAC and 16A at 125VAC, it is suitable for controlling a wide range of industrial equipment.
Operating within a temperature range of -25°C to +70°C, the XO08R2 1SBP260109R1001 is built to withstand harsh industrial conditions, ensuring reliable performance over extended periods.
🛠 Installation & Maintenance
- Installation: Mount the module on a standard DIN rail, ensuring secure connections for both power and relay outputs.
- Wiring: Connect the relay outputs to the controlled devices, adhering to the module’s contact rating specifications.
- Configuration: Utilize the appropriate control system software to configure the module’s settings, including relay operations and fault diagnostics.
- Maintenance: Regularly inspect the module for any signs of wear or damage. Ensure that all connections are tight and free from corrosion. Periodically test the relay operations to confirm proper functionality.
🌐 Applications
The ABB XO08R2 1SBP260109R1001 is ideal for applications requiring reliable relay output control, such as:
- Industrial Automation: Control of machinery and equipment in manufacturing processes.
- Process Control: Regulation of parameters in chemical and petrochemical industries.
- Building Automation: Management of HVAC systems, lighting, and security systems.
- Energy Management: Monitoring and controlling energy distribution systems.
Its robust design and versatile features make it a reliable choice for enhancing control capabilities in various industrial settings.
🔗 Useful Resources
📑 Recommended Similar Models
| Model | Description | Link |
|---|---|---|
| XO08R2-A4.0 | Enhanced version with additional features | View |
| DO820 | Digital Output Module for ABB systems | View |
| DO820A | Advanced Digital Output Module | View |
| DO820B | Digital Output Module with extended capabilities | View |
For more information or to inquire about purchasing the ABB XO08R2 1SBP260109R1001 module, please visit the provided links or contact the manufacturer directly.
