Description
| Parameter Category | Specification |
|---|---|

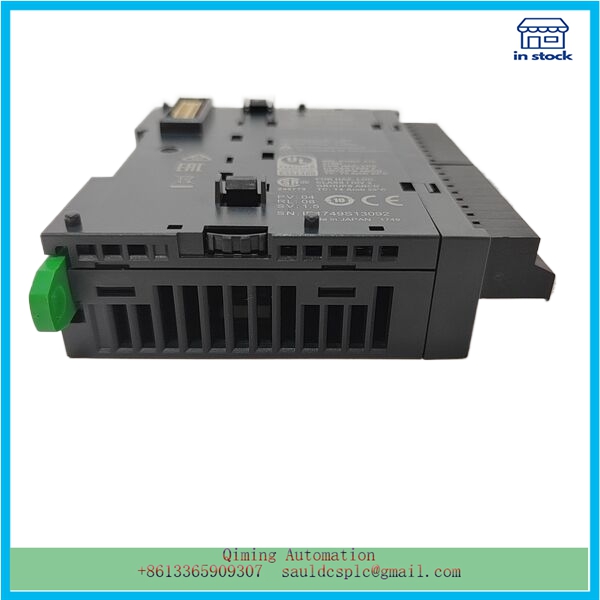

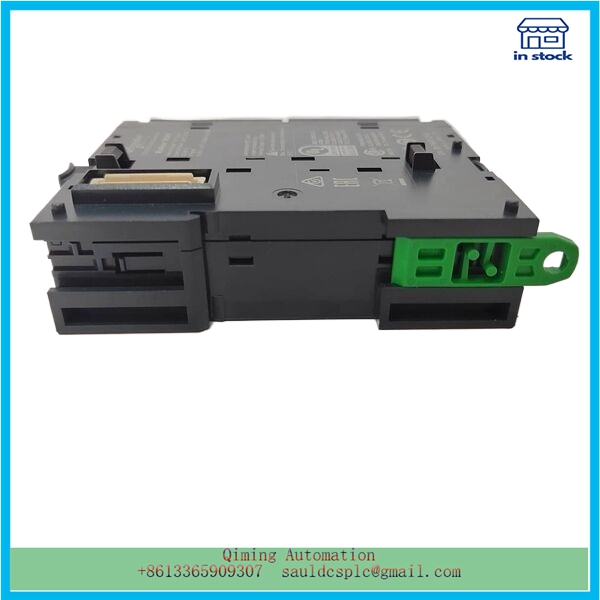

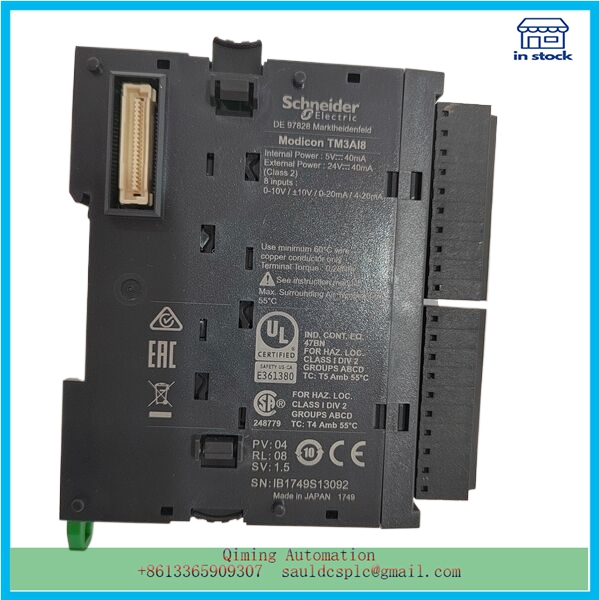

| Product Model | TM3AI8 |
| Manufacturer Part Number | TM3AI8 |
| Product Type | Analog Input Module |
| Country of Origin | France |
| Supply Voltage | 24 V DC |
| Power Consumption | 5 W |
| Operating Current | 0.2 A |
| Color | Grey / Black |
| Material | Industrial-grade plastic & metal |
| Dimensions (L×W×H) | 90 × 35 × 60 mm |
| Mounting / Installation Size | DIN rail mount, standard modular width |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% – 95% RH, non-condensing |
| Ingress Protection (Water/Dust) | IP20 |
| Weight | Approx. 0.15 kg |
| Input Channels | 8 analog inputs |
| Signal Types | 0–10 V, 0–20 mA, configurable |
| Application Areas | PLC systems, industrial automation, process control |
| Certifications | CE, UL, CSA compliant |
