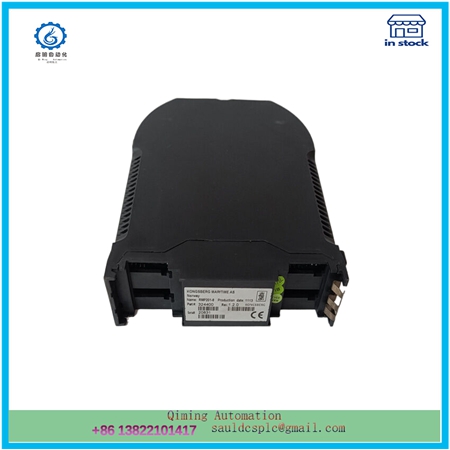

⚙️ KONGSBERG RMP201-8 Remote MultiPurpose I/O Module
📖 Product Overview
The KONGSBERG RMP201-8 is a versatile remote input/output (I/O) module designed for use in demanding industrial and marine environments. Part of the RIO200 family, this module offers flexible I/O capabilities, enabling seamless integration with various sensors, actuators, and control systems. Its robust design ensures reliable performance in harsh conditions, making it suitable for applications in automation, robotics, marine systems, and more.
📊 Technical Specifications
| Feature | Specification |
|---|---|
| Model | RMP201-8 (Part No. 324400) |
| Product Type | Remote MultiPurpose I/O Module |
| Channels | 8 channels (6 multipurpose, 2 isolated) |
| Multipurpose Channels | Configurable as Digital Input (DI), Digital Output (DO), Analog Input (AI), Analog Output (AO), or Potentiometer (Pot) |
| Isolated Channels | 2 channels (DI, AI, or AO) |
| Analog Voltage Span | ±10 V (20 V span) |
| Analog Resolution | 16-bit ADC |
| Digital Output Power | 24 V DC regulated, 0.1 A per channel |
| Power Supply | 24 V DC (isolated dual input) |
| Communication Interface | Dual RBUS interfaces (A and B) for redundant communication with host RCU(s) |
| Module Status Indicators | Run/Error LED indicators |
| Diagnostic Features | Built-in test (BIT), internal voltage monitoring, hot-swap capability |
| Compliance Standards | IEC 60945, IACS E10 |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 355 mm x 158 mm x 87 mm |
| Weight | 1.35 kg |
🔧 Installation & Maintenance
- Mounting: The RMP201-8 module is designed for snap-on mounting onto a horizontal dual-rail, facilitating easy installation and replacement.
- Wiring: Utilize screw clamp terminals for secure connections to field devices. Ensure correct wiring according to the module’s configuration.
- Power Supply: Connect a 24 V DC power source to the isolated dual input terminals, observing proper polarity and voltage ratings.
- Communication Setup: Configure the RBUS interfaces for communication with the host RCU(s), ensuring proper addressing and network topology.
- Diagnostics: Monitor the Run/Error LED indicators to assess module status. Use built-in diagnostic features to identify and troubleshoot issues.
- Maintenance: Perform regular inspections and maintenance to ensure optimal performance. The hot-swap capability allows for module replacement without system shutdown.
🌐 Industrial Applications
The RMP201-8 module is suitable for a wide range of applications, including:
- Marine Systems: Integration with shipboard control systems for monitoring and control of various subsystems.
- Industrial Automation: Connecting sensors and actuators in manufacturing processes for real-time data acquisition and control.
- Robotics: Interfacing with robotic systems for precise control and feedback.
- Building Automation: Monitoring and controlling building systems such as HVAC, lighting, and security.
- Power Systems: Collecting data from power distribution systems for monitoring and analysis.
Its versatility and robust design make it a reliable choice for complex automation and control systems.
🔗 Additional Resources
For more information on the RMP201-8 module and related products:
📑 Similar Product Recommendations
| Model | Description | Application |
|---|---|---|
| RMP201-16 | 16-channel I/O module | Applications requiring higher I/O density |
| RMP202-8 | 8-channel I/O module with enhanced features | Systems needing advanced diagnostic capabilities |
| RMP203-8 | 8-channel I/O module with increased communication speed | High-speed data acquisition applications |
| RMP204-8 | 8-channel I/O module with integrated safety features | Safety-critical systems |
| RMP205-8 | 8-channel I/O module with extended temperature range | Extreme environmental conditions |
Should you require further details or assistance with selecting the appropriate I/O module for your application, feel free to reach out.
