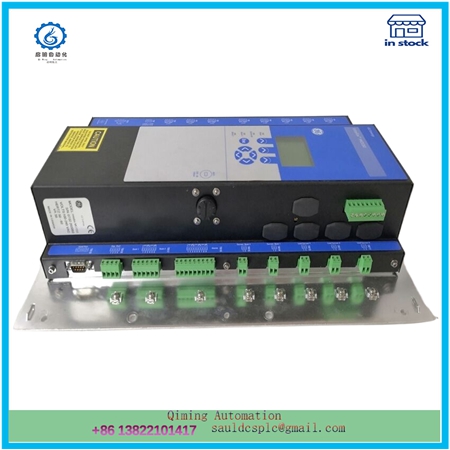

⚙️ GE INTELLIX MO150 Transformer Monitoring System
📖 Product Overview
The GE INTELLIX MO150 is an advanced transformer monitoring system designed to provide real-time diagnostics and condition assessment for oil-insulated transformers. This intelligent microprocessor-based device integrates various sensors and analytical models to monitor critical parameters, ensuring the safe and efficient operation of transformers in electrical utilities and industrial applications.
🔧 Key Features
- Comprehensive Monitoring: Monitors key transformer parameters including oil temperature, load current, gas concentration, and moisture levels.
- Advanced Diagnostics: Utilizes embedded transformer models to assess health indicators such as hot spot temperature, cooling efficiency, and tap changer status.
- Real-Time Data Acquisition: Collects and processes data from various sensors, providing up-to-date information for decision-making.
- Historical Data Storage: Stores over 3,700 historical alarms and events, and more than 4,900 service logs, facilitating trend analysis and predictive maintenance.
- User-Friendly Interface: Features a multi-host software system with a client user interface running on a remote PC, allowing for easy access and control.
- Flexible Sensor Integration: Supports connection to multiple Hydran S2 gas and moisture sensors, enhancing fault detection capabilities.
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | INTELLIX MO150 |
| Manufacturer | General Electric (GE) |
| Power Supply | 100-230 VAC ±10%, single-phase, 50/60 Hz |
| Power Consumption | 80 VA maximum |
| Housing | NEMA 4X, stainless steel, oven-baked powder paint |
| Dimensions | 711 mm x 597 mm x 197 mm |
| Weight | 28.5 kg |
| Operating Temperature | -40°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 0-100% RH |
| Communication Ports | Ethernet, RS485, USB |
| Relay Outputs | 5 SPDT relays (1.5 A @ 240 V) |
| Analog Inputs | 8 (4-20 mA or RTD PT100) |
| AC Inputs | 5 (load and fan currents) |
| Digital Inputs | 2 (system alarm, cooling control, cooling alarm) |
| Sensor Inputs | 1 Hydran S2 gas and moisture sensor, 2 RTDs, 1 CT transducer |
⚡ Installation Guidelines
- Mounting: Install the INTELLIX MO150 on a flat surface or directly onto the transformer tank wall using the provided mounting brackets. Ensure the unit is securely fastened to prevent vibrations.
- Electrical Connections: Connect the power supply to the designated input terminals, ensuring correct polarity and voltage levels. Use appropriate cable sizes to handle the current requirements.
- Sensor Integration: Connect the sensors (Hydran S2, RTDs, CT transducer) to the corresponding input terminals. Verify proper calibration and positioning of sensors for accurate measurements.
- Communication Setup: Connect the communication ports (Ethernet, RS485, USB) to the respective network or monitoring systems. Configure communication settings as per system requirements.
- System Configuration: Utilize the client user interface software to configure the INTELLIX MO150 settings, including sensor parameters, alarm thresholds, and communication protocols.
- Testing and Calibration: Perform functional tests to verify the system’s operation. Calibrate sensors as necessary to ensure accurate readings.
🛠️ Maintenance Instructions
- Regular Inspections: Periodically check the physical condition of the INTELLIX MO150, including the housing, connectors, and mounting.
- Sensor Calibration: Regularly calibrate sensors to maintain measurement accuracy. Follow manufacturer’s guidelines for calibration procedures.
- Software Updates: Keep the system software up to date to ensure compatibility with the latest features and security patches.
- Data Backup: Regularly back up historical data and configuration settings to prevent data loss.
- Cleaning: Clean the exterior of the unit with a dry, lint-free cloth. Avoid using solvents or abrasive materials that could damage the surface.
- Troubleshooting: In case of malfunction, refer to the system’s diagnostic tools and error logs to identify and resolve issues promptly.
🌍 Applications
The INTELLIX MO150 is suitable for various applications, including:
- Power Generation Plants: Monitoring transformer health to ensure continuous power supply.
- Industrial Facilities: Managing transformer assets to prevent unexpected downtime.
- Utility Companies: Enhancing grid reliability through proactive transformer monitoring.
- Renewable Energy Installations: Ensuring transformer performance in wind and solar power systems.
- Mining Operations: Monitoring transformers in remote locations to reduce maintenance costs.
