📘 FOXBORO FCP280 RH924YA Datasheet
📑 Product Overview

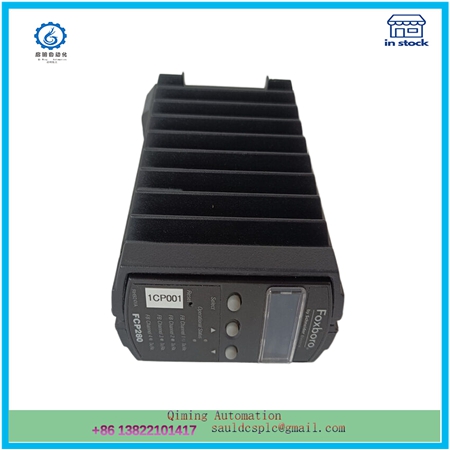

The FOXBORO FCP280 RH924YA is a high-performance Field Control Processor designed for industrial automation applications. As part of the EcoStruxure™ Foxboro DCS (Distributed Control System), it offers advanced control capabilities, robust communication options, and a modular design to meet the demands of modern process industries.
This processor is engineered to perform regulatory, logic, timing, and sequential control, along with data acquisition, alarm detection, and notification. Its fault-tolerant design ensures high availability and continuous operation, making it suitable for critical applications where downtime is not acceptable.
⚙️ Key Features
- 🔹 Advanced Control Capabilities: Supports regulatory, logic, timing, and sequential control functions.
- 🔹 Fault-Tolerant Design: Utilizes a dual-module configuration to enhance reliability and ensure uninterrupted operation.
- 🔹 High-Speed Communication: Connects to the Foxboro DCS Control Network via standard fiber optic or copper 100 Mbps Ethernet cables.
- 🔹 Modular Architecture: Allows for easy integration and scalability within existing control systems.
- 🔹 Real-Time Diagnostics: Provides comprehensive diagnostics to monitor system health and performance.
📊 Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | FOXBORO FCP280 RH924YA |
| Processor Type | ARM Cortex-A15 |
| Memory | 2 GB RAM, 4 GB Flash |
| I/O Capacity | Supports up to 2048 I/O points |
| Communication Protocols | Ethernet, Modbus, PROFIBUS, HART |
| Power Supply | 24 VDC |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 150mm x 240mm x 350mm |
| Weight | 0.78 kg |
| Compliance | CE, UL, CSA |
🛠️ Installation and Maintenance
- Mounting: The FCP280 module can be mounted horizontally or vertically in specific 2-position baseplates.
- Wiring: Connect digital and analog inputs/outputs using appropriate cables and connectors, adhering to the specified voltage and current ratings.
- Configuration: Utilize Foxboro’s configuration tools to set up communication parameters, input/output assignments, and diagnostic settings.
- Testing: Perform functionality tests to verify proper operation and communication with other system components.
- Maintenance: Regularly inspect the module for signs of wear or damage, clean connectors, and update firmware as necessary to maintain optimal performance.
📦 Applications
- Power Generation: Monitoring and control of turbines, generators, and auxiliary systems.
- Oil & Gas: Automation of drilling, refining, and distribution processes.
- Chemical Processing: Regulation of chemical reactions, mixing, and packaging.
- Water Treatment: Control of filtration, pumping, and distribution systems.
- Manufacturing: Automation of production lines, material handling, and quality control processes.
🔗 Useful Resources
- Explore ALSTOM’s automation solutions at stardcsplc.com.
- Discover compatible modules and accessories at stardcsplc.com.
📋 Recommended Similar Models
| Model Number | Description | Link |
|---|---|---|
| FCP280 RH924YB | Enhanced Field Control Processor | View |
| FCP270 P0917YZ | Compact Field Control Processor | View |
| FCP280 RH924YC | Fault-Tolerant Field Control Processor | View |
| FCP280 RH924YD | High-Performance Field Control Processor | View |
| FCP280 RH924YE | Modular Field Control Processor | View |
If you require further information on the FCP280 module or assistance with system integration, please feel free to reach out.
