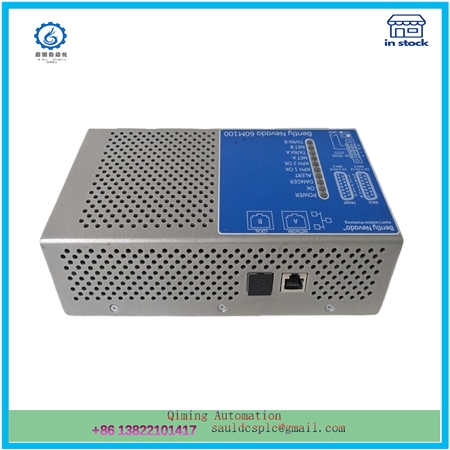

📑 BENTLY 60M100-00 Machinery Vibration Sensor
The BENTLY 60M100-00 is a high-precision vibration monitoring sensor designed for industrial machinery protection and condition monitoring. Engineered to deliver accurate displacement measurements, this sensor ensures early detection of mechanical anomalies such as imbalance, misalignment, and bearing defects. Its robust design allows reliable operation in harsh environments while providing data that enhances predictive maintenance strategies.
⚙️ Key Features
- High Sensitivity – Capable of detecting minute shaft movements to prevent machinery damage.
- Wide Frequency Range – Suitable for monitoring both low-speed and high-speed rotating equipment.
- Durable Construction – Resistant to temperature variations, vibration, and mechanical shock.
- Easy Installation – Compact form factor allows seamless integration with Bently Nevada monitoring systems.
- Reliable Signal Output – Provides consistent AC or DC signals for transient and steady-state monitoring.
- Maintenance-Friendly – Minimal calibration requirements and long service life.
📊 Technical Parameters (Datasheet)
| Parameter | Description |
|---|---|
| Model Number | 60M100-00 |
| Sensor Type | Proximity/Vibration Sensor |
| Measurement Range | ±25 mils (0.635 mm) typical |
| Frequency Response | 0.5 Hz – 10 kHz |
| Output Signal | AC displacement or DC velocity |
| Tip Style | Flat or domed, depending on configuration |
| Operating Temperature | -40 °C to +120 °C |
| Storage Temperature | -55 °C to +125 °C |
| Environmental Protection | IP65 (dust and moisture resistant) |
| Mounting | Threaded or stud-mounted |
| Cable Length | Standard 10 ft (custom lengths available) |
| Weight | Approx. 0.2 kg |
| Certification | CE, CSA |
🔧 Installation and Maintenance
- Installation: Mount the sensor on a rigid surface close to the monitored shaft. Align the probe tip parallel to the target surface for accurate readings.
- Wiring: Connect to compatible Bently monitoring equipment using shielded cables to prevent electrical noise.
- Calibration: Perform initial zeroing and periodic checks to maintain measurement accuracy.
- Maintenance: Inspect the probe tip and cable for wear or damage. Replace components if environmental exposure exceeds recommended conditions.
- Environment: Ensure operating conditions are within specified temperature and humidity ranges. Avoid corrosive chemicals or excessive mechanical impact.
🏭 Typical Applications
- Steam and gas turbines
- Centrifugal and reciprocating compressors
- Generators and electric motors
- Pumps and fans in industrial plants
- Refinery and petrochemical machinery monitoring
🌐 Useful Links
- Explore Bently products: stardcsplc.com
- Find compatible monitoring modules: stardcsplc.com
📌 Recommended Similar Models
| Model | Description | Application |
|---|---|---|
| 60M101-00 | Vibration Sensor with extended range | High-speed machinery monitoring |
| 3500/42M 140734-02 | Proximitor/Seismic Monitor | Shaft displacement and casing vibration monitoring |
| 3300 XL 2230-03 | High-precision proximity sensor | Turbine and compressor applications |
| 3500/05-01-03-00-00-00 | System Rack | Houses sensors and provides backplane connectivity |
| 3500/25 184684-01 | Transient Data Interface (TDI) | Real-time data acquisition for condition monitoring |
This introduction combines the sensor’s technical precision, robust industrial design, and integration capabilities, making it suitable for demanding applications requiring high reliability and long-term performance.
