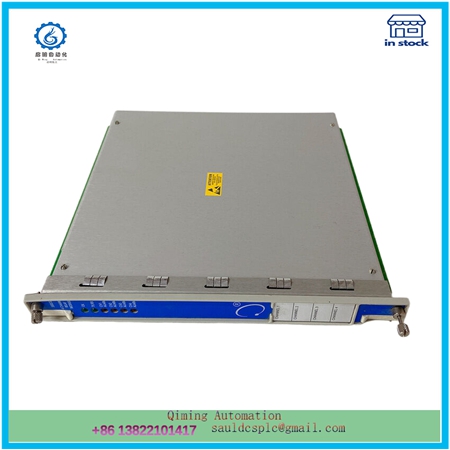

📘 BENTLY 3500/32 125712-01 Relay Module
The BENTLY 3500/32 125712-01 Relay Module is an integral part of the 3500 Machinery Protection System, providing highly reliable relay outputs for alarm and trip functions. It ensures secure interconnection between machine monitoring signals and plant-wide safety or control systems. Designed for industrial applications, it offers advanced configurability, robust diagnostics, and seamless integration with the 3500 rack environment.
⚙️ Product Overview
The 3500/32 Relay Module serves as the interface between the monitoring system and external control logic. By providing normally open and normally closed contacts, the module allows alarm and trip events to be easily tied to plant shutdown mechanisms, annunciators, or external logic solvers. With its rugged build, redundant power capability, and compatibility with the 3500 rack architecture, this relay module maintains system integrity in mission-critical environments.
📊 Datasheet Parameters
| Parameter | Description |
|---|---|
| Part Number | 125712-01 |
| Module Type | Relay Module |
| System Compatibility | BENTLY 3500 Series Machinery Protection System |
| Relay Contacts | Normally Open (NO) and Normally Closed (NC) |
| Relay Capacity | Supports multiple relay assignments per module |
| Power Consumption | Low, sourced through the 3500 rack |
| Redundancy | Fully supported in redundant configurations |
| Mounting | Plug-in module for 3500 rack slots |
| Status Indication | LED indicators for module health and relay state |
| Environmental Rating | Designed for industrial temperature and vibration ranges |
| Communication | Integrated with rack backplane, no external wiring required |
| Dimensions | Standard 3500 rack module size |
| Weight | Approx. 0.5 kg |
| Certifications | CE, CSA, and other applicable industrial safety standards |
🔑 Key Features
- Multiple Relay Assignments: Each relay can be configured for specific alarm or trip conditions, ensuring flexibility across a wide range of applications.
- Fail-Safe Operation: In the event of power loss or internal fault, the module defaults to a fail-safe condition, preserving plant safety.
- Configurable Logic: Relays can be programmed to respond to multiple conditions simultaneously, offering advanced alarm management.
- Diagnostic LEDs: Front-panel LEDs provide immediate feedback on relay status and health conditions, simplifying maintenance.
- Hot-Swappable Design: Modules can be replaced without shutting down the rack, minimizing downtime.
- Redundant Integration: Operates seamlessly in redundant rack configurations, enhancing reliability in critical operations.
🏭 Applications
- Turbomachinery protection systems
- Compressor and pump shutdown logic
- Power plant safety systems
- Oil & gas offshore platforms
- Petrochemical plant interlocks
- Industrial process automation requiring critical safety layers
🔧 Installation & Maintenance
- Installation: The module is inserted into the designated slot within the 3500 rack. Wiring is not required directly to the module, as communication and power are provided via the backplane. Ensure that the rack firmware supports the module version before installation.
- Wiring to Relays: External connections are made at the terminal strips associated with the rack’s I/O interface modules. Relay contacts are accessible without interfering with the module itself.
- Maintenance: Regular system checks should include verification of relay functionality and monitoring of LED health indicators. Since the module is hot-swappable, it can be replaced in-service without system downtime.
- Lifecycle Support: Routine inspection and firmware updates (when applicable) extend operational longevity.
🌐 Useful Links
- Explore more about industrial automation parts here: https://www.stardcsplc.com/
- Browse extended product ranges and spare modules: https://www.stardcsplc.com/
📌 Technical Benefits
- System Safety: Provides a reliable interface to initiate controlled shutdowns.
- Cost Efficiency: Reduces downtime with hot-swappable design.
- Long-Term Reliability: Designed to operate in harsh industrial environments with high vibration resistance.
- Scalability: Easily integrated into both small and large rack configurations.
📑 Recommended Similar Models
| Model Number | Description | Availability |
|---|---|---|
| BENTLY 3500/33 149986-01 | Dual Redundant Relay Module | ✔ |
| BENTLY 3500/25 184684-01 | Keyphasor Module | ✔ |
| BENTLY 3500/15 133292-01 | Power Supply Module | ✔ |
| BENTLY 3500/22M 138607-01 | Transient Data Interface Module | ✔ |
| BENTLY 3500/42M 176449-02 | Proximitor/Seismic Monitor | ✔ |
