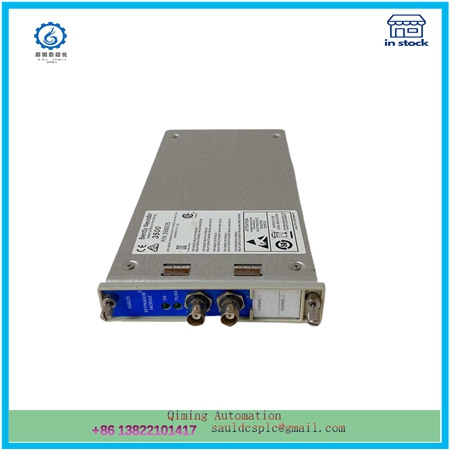

📑 BENTLY 3500/25 184684-01 Transient Data Interface (TDI)
The BENTLY 3500/25 184684-01 is a Transient Data Interface (TDI) module designed for integration within the 3500 machinery protection system. It acts as both a communications processor and a transient data collector, enabling the system to interface with software platforms while ensuring reliable machinery monitoring and diagnostics. Its dual functionality makes it a core component in delivering both real-time protection and detailed condition monitoring for rotating machinery in critical industrial environments.
⚙️ Product Features
- Dual Role Functionality – Operates as both the rack controller and transient data acquisition device.
- High-Speed Data Capture – Collects and transmits dynamic vibration and process parameters for in-depth diagnostics.
- Network Connectivity – Communicates with external software applications through standard protocols.
- System Integration – Interfaces seamlessly with the 3500 rack and connected monitoring modules.
- Robust Security – Provides secure and reliable data exchange to maintain operational integrity.
- Easy Upgrade – Designed for compatibility with multiple firmware versions and backward support.
📊 Technical Parameters (Datasheet)
| Parameter | Description |
|---|---|
| Part Number | 184684-01 |
| Module Type | Transient Data Interface (TDI) |
| Rack Compatibility | BENTLY 3500 Series |
| Communication Ports | Ethernet, Serial |
| Functions | Rack controller + Transient data collection |
| Operating Temperature | -30 °C to +65 °C |
| Power Supply | From 3500 rack backplane |
| Mounting | 3500 rack slot (controller position) |
| Dimensions | Standard 3500 module size |
| Weight | Approx. 0.8 kg |
| Certifications | CE, CSA, ATEX (varies by version) |
🔧 Installation and Maintenance
- Installation: Insert the TDI module into the designated rack slot, ensuring proper alignment with the backplane connector. Secure it firmly with mounting screws to maintain vibration resistance.
- Wiring: Connect Ethernet or serial cables for communication. Verify grounding to reduce noise interference.
- Configuration: Use system software to assign the module role, configure data acquisition parameters, and enable communication with external platforms.
- Maintenance: Periodically inspect connections, verify firmware updates, and perform diagnostic checks via system software. Replace only with compatible part numbers to maintain system reliability.
- Environmental Considerations: Operate within specified temperature and humidity ranges. Avoid exposure to dust, moisture, or corrosive atmospheres without appropriate enclosure protection.
🏭 Typical Applications
- Turbomachinery protection and diagnostics
- Power generation plant monitoring
- Oil & gas compressor condition monitoring
- Refinery and petrochemical rotating machinery supervision
- Industrial plant predictive maintenance
🌐 Useful Links
- Explore more automation solutions: stardcsplc.com
- Find compatible BENTLY modules: stardcsplc.com
📌 Recommended Similar Models
| Model | Description | Application |
|---|---|---|
| 3500/15 133292-01 | Power Supply Module | Provides stable rack power distribution |
| 3500/22M 138607-01 | Transient Data Interface (TDI) | Advanced version with extended communication features |
| 3500/42M 140734-02 | Proximitor/Seismic Monitor | Monitors shaft vibration and casing measurements |
| 3500/05-01-03-00-00-00 | System Rack | Houses modules and provides backplane connectivity |
| 3500/25 149369-01 | Alternate TDI Module | Designed for specialized monitoring requirements |
