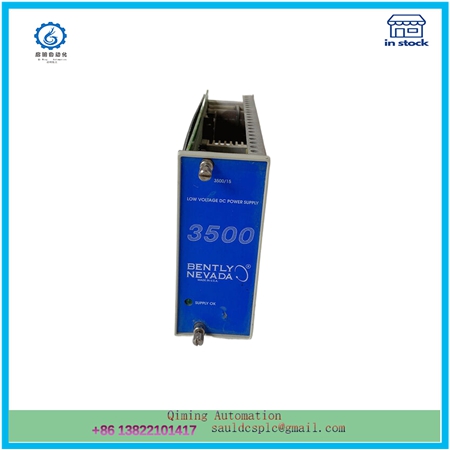

📘 BENTLY 3500/15 133292-01 – Power Supply Module
The BENTLY 3500/15 133292-01 is a high-performance Power Supply Module designed for the 3500 Machinery Protection System. It ensures stable energy delivery to the entire monitoring rack and guarantees operational reliability across critical turbomachinery and industrial equipment. Engineered with robust components, this module offers secure operation under challenging industrial conditions, making it a trusted choice for power-intensive applications.
⚙️ Product Overview
The 3500/15 module converts incoming AC or DC power into regulated outputs, distributing consistent voltage to all modules installed in the rack. Its design integrates redundancy options, allowing multiple power supplies to be installed to enhance system availability. This improves uptime and reliability in process industries where equipment protection is essential.
📊 Datasheet – Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | 133292-01 |
| Series | Bently Nevada 3500/15 |
| Function | Power Supply Module |
| Input Voltage Range | AC: 85–264 V, DC: 100–150 V |
| Output Voltage | +24 VDC regulated |
| Power Rating | Up to 120 W |
| Redundancy Support | Yes, dual module installation supported |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Form Factor | Plug-in module for 3500 rack |
| Dimensions | Standard rack size (3/4 slot) |
| Weight | Approx. 1.2 kg |
| Compliance | CE, UL, CSA |
🔧 Installation
- Ensure the rack power is switched off before installation.
- Insert the module into the designated slot until firmly seated.
- Secure the module with rack fasteners to prevent vibration-related displacement.
- Connect appropriate AC or DC input lines to the designated terminals.
- If redundant operation is required, install a second power supply in the adjacent slot.
🛠️ Maintenance
- Perform periodic inspection to check for dust accumulation or loose connectors.
- Ensure ventilation pathways are unobstructed to prevent overheating.
- Replace only with the same model (133292-01) or manufacturer-approved equivalent.
- Monitor module status indicators during operation; abnormal LED states should be addressed immediately.
- Store spare modules in anti-static packaging and dry environments.
🌍 Reliability in Operation
The 3500/15 133292-01 is widely applied in oil & gas plants, petrochemical facilities, and power generation systems where uninterrupted monitoring is essential. By supporting redundant configurations, it maximizes operational safety and ensures that machinery protection remains unaffected during a single power module fault.
