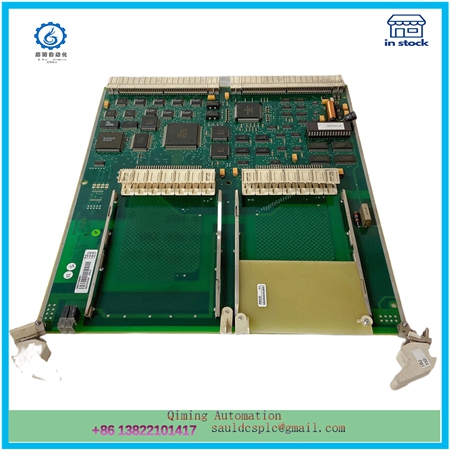

📘 ABB SC510 3BSE003832R1 Submodule Carrier
🔎 Product Overview
The ABB SC510 3BSE003832R1 is a high-performance submodule carrier designed for seamless integration into ABB’s automation systems. Serving as a modular component, it provides support for additional submodules, facilitating the expansion and customization of control systems to meet specific industrial requirements.
This submodule carrier is engineered to accommodate various ABB modules, enabling flexible configurations and scalability in automation setups. Its robust design ensures reliable performance in demanding industrial environments, making it a suitable choice for applications requiring modular control solutions.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | SC510 3BSE003832R1 |
| Product Type | Submodule Carrier |
| CPU Presence | Without CPU |
| Operating Voltage | 24 VDC |
| Current Capacity | Up to 16A |
| Communication Interface | RS-485 |
| Dimensions (WxHxD) | 100 x 32 x 115 mm |
| Weight | 0.28 kg |
| Environmental Compliance | RoHS Compliant |
| HS Code | 85389091 |
| Country of Origin | Sweden |
🌐 Key Features
- Modular Design: Supports a variety of submodules, allowing for tailored configurations to meet specific application needs.
- Robust Construction: Built to withstand harsh industrial conditions, ensuring long-term reliability.
- Flexible Integration: Compatible with ABB’s extensive range of automation systems, facilitating seamless system expansion.
- Efficient Communication: Utilizes RS-485 interface for reliable data transmission between modules.
- Compact Form Factor: Space-saving design suitable for environments with limited installation space.
🛠️ Installation and Maintenance
- Installation: The SC510 submodule carrier is designed for easy integration into ABB automation systems. Ensure proper alignment and secure mounting during installation to maintain system integrity.
- Wiring: Connect the submodules to the carrier using appropriate cables, adhering to the specified voltage and current ratings to prevent damage.
- Maintenance: Regularly inspect the carrier and connected submodules for signs of wear or damage. Clean the components to prevent dust accumulation, which can affect performance.
- Replacement: In case of failure, replace the faulty submodule carrier with a compatible unit to restore system functionality promptly.
🔗 Useful Resources
📑 Recommended Similar Products
| Model Number | Description | Application Field | Link |
|---|---|---|---|
| ABB SC520 | Submodule Carrier with CPU | Advanced control systems | View |
| ABB SC530 | High-performance Submodule Carrier | High-speed automation processes | View |
| ABB SC540 | Submodule Carrier with enhanced features | Complex industrial applications | View |
| ABB SC550 | Compact Submodule Carrier | Space-constrained installations | View |
| ABB SC560 | Submodule Carrier with extended capacity | Large-scale automation systems | View |
Would you like assistance in selecting the most suitable submodule carrier for your specific application needs?
