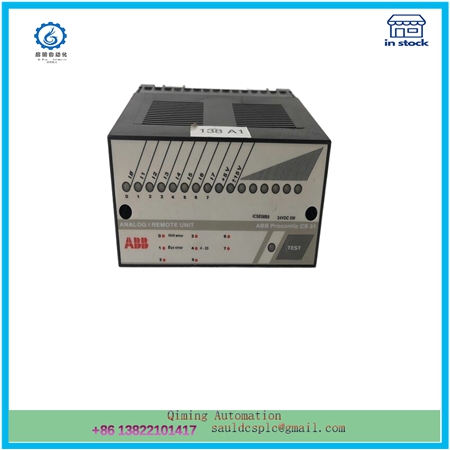

📘 ABB ICSE08B5 Datasheet
The ABB ICSE08B5 is an input/output module widely used in ABB control systems, designed to provide reliable connectivity, high-speed data processing, and seamless integration within industrial automation networks. This unit is part of ABB’s advanced I/O system, supporting precise monitoring and efficient control of field signals. It is optimized for mission-critical applications such as power generation, petrochemical plants, and manufacturing processes where continuous system reliability is essential.
🔧 Product Parameters
| Parameter | Details |
|---|---|
| Part Number | ICSE08B5 |
| Manufacturer | ABB |
| Module Type | Digital I/O Module |
| Channels | 8 channels |
| Signal Type | Configurable for digital input/output |
| Input Voltage Range | 24 VDC nominal |
| Output Voltage | 24 VDC nominal |
| Power Consumption | ≤ 7 Watts |
| Mounting | DIN rail or rack-mounted installation |
| Dimensions (H×W×D) | 135 mm × 25 mm × 120 mm |
| Weight | Approx. 0.3 kg |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% non-condensing |
| Interface | System bus compatible |
| Diagnostics | Built-in status indicators (LED) |
| Certification | CE, UL, ATEX Zone 2 |
| Redundancy | Supported in dual configuration |
⚙️ Product Overview
The ICSE08B5 module provides flexible signal handling capabilities, combining both input and output functions in a single compact design. This hybrid approach reduces system footprint while maintaining operational efficiency. Each channel can be independently configured, allowing engineers to optimize control strategies based on application needs.
Designed for use in ABB’s distributed control systems, the module integrates directly with communication buses, ensuring low latency and consistent performance. Built-in LED indicators allow operators to quickly verify channel status, simplifying troubleshooting and maintenance. Its robust construction enables stable operation even in harsh environments where temperature fluctuations and vibration are common.
🛠 Installation & Maintenance
- Install the module securely onto the system rack or DIN rail, ensuring proper alignment with bus connectors.
- Use shielded cables to minimize interference in high-noise industrial environments.
- Verify correct polarity and grounding before powering up the system.
- Regularly inspect terminals for dust or oxidation to maintain stable electrical connections.
- The module supports hot-swap replacement, minimizing downtime during maintenance activities.
- Perform firmware updates periodically to align with the latest ABB system improvements.
🌐 Applications
- Power generation plant automation
- Petrochemical and refinery process monitoring
- Industrial machinery control and diagnostics
- Oil & gas pipeline station automation
- Advanced manufacturing and material handling
