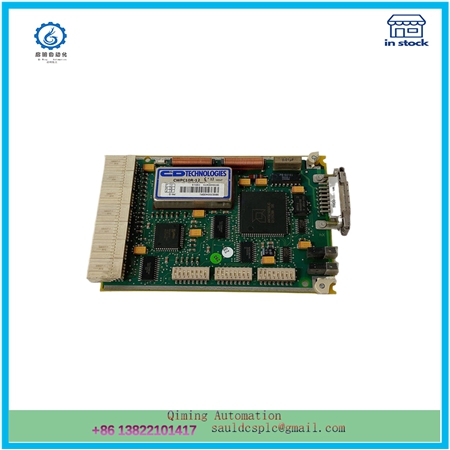

⚙️ ABB CS513 3BSE000435R1 Communication Module
📖 Product Overview
The ABB CS513 3BSE000435R1 is an IEEE 802.3 LAN communication module designed for integration into ABB’s Advant OCS (Open Control System) platforms, including the AC 400 series controllers. This module facilitates high-speed Ethernet communication, enabling efficient data exchange between controllers and system components. Its compact design and robust construction make it suitable for demanding industrial environments.
🔧 Key Features
- High-Speed Ethernet Communication: Supports IEEE 802.3 LAN protocol, ensuring fast and reliable data transmission.
- MasterBus 300 Compatibility: Equipped with MasterBus 300 and MasterBus 300E interfaces, allowing flexible system configurations.
- Compact Design: Slim profile (234 mm x 18 mm x 108 mm) facilitates easy integration into control panels.
- Low Power Consumption: Operates at 5V and 24V with a current draw of 0.25A, and a total power dissipation of 8W.
- DIN Rail Mounting: Designed for secure and straightforward mounting in standard DIN rail setups.
- Wide Operating Temperature Range: Suitable for environments with temperatures ranging from -25°C to +55°C.
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | CS513 3BSE000435R1 |
| Manufacturer | ABB |
| Product Type | Communication Module |
| Compatibility | Advant OCS Systems (AC410, AC450, AC460) |
| Communication Protocol | IEEE 802.3 LAN |
| Interfaces Supported | MasterBus 300 (Standard), MasterBus 300E (Extended) |
| Mounting Type | DIN Rail |
| Dimensions (L x H x W) | 234 mm x 18 mm x 108 mm |
| Weight | 0.2 kg |
| Power Supply | 5V DC / 24V DC |
| Current Consumption | 0.25A at both 5V and 24V |
| Power Dissipation | 8W |
| Operating Temperature Range | -25°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
| RoHS Compliance | Yes |
| CE Marking | Yes |
⚡ Installation Guidelines
- Mounting: Install the CS513 module onto a standard DIN rail, ensuring it is securely locked in place to prevent mechanical stress.
- Wiring: Connect the module’s terminals to the corresponding system components, adhering to the wiring diagrams provided in the user manual.
- Configuration: Set the switch positions on the module to select the appropriate MasterBus interface (Position 1 for MB300, Position 3 for MB300E) as per system requirements.
- Power Supply: Ensure that the power supply matches the module’s specifications (5V or 24V) and is within the acceptable voltage range.
- Testing: After installation, perform diagnostic tests to verify proper communication and functionality within the system.
🛠️ Maintenance Instructions
- Regular Inspections: Periodically check the module for signs of wear, corrosion, or loose connections.
- Firmware Updates: Keep the module’s firmware up to date to ensure compatibility with the latest system features and security enhancements.
- Environmental Conditions: Monitor the operating environment to ensure it remains within the specified temperature and humidity ranges to prevent damage.
- Cleaning: Use a dry, lint-free cloth to clean the module’s exterior. Avoid using solvents or abrasive materials that could damage the components.
- Troubleshooting: In case of communication issues, verify all connections, check for firmware compatibility, and consult the system’s diagnostic tools for error codes or alerts.
🌍 Applications
The CS513 3BSE000435R1 module is ideal for use in:
- Power Generation Plants: Facilitates communication between controllers and monitoring systems.
- Industrial Automation: Integrates various system components for streamlined operations.
- Process Control Systems: Ensures reliable data exchange in complex control environments.
- Renewable Energy Systems: Connects controllers in wind and solar power installations.
- Marine Applications: Supports communication in onboard control systems.
