Description
| Parameter Category | Specification |
|---|---|

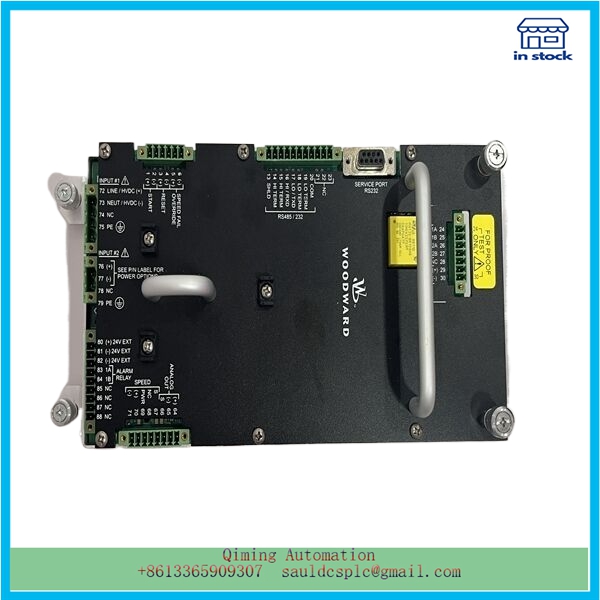

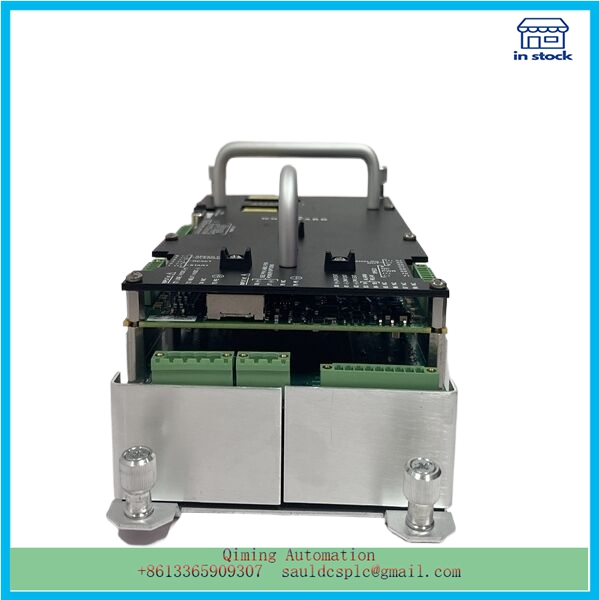

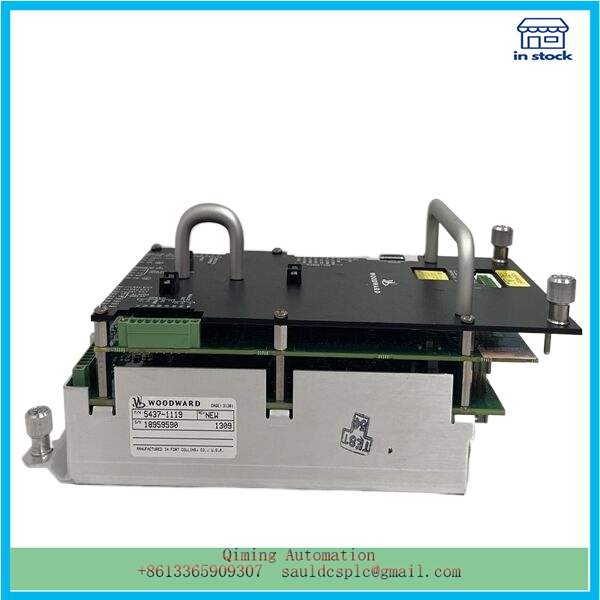

| Model | WOODWARD 5437-1119 |
| Device Type | Electronic Governor / Control Module |
| Origin / Made In | USA |
| Dimensions (HxWxD) | 150 x 100 x 75 mm |
| Installation Dimensions | Panel mount: 140 x 90 mm cutout |
| Weight | 1.2 kg |
| Power Supply | 12–32 VDC |
| Power Consumption | 6 W nominal |
| Operating Voltage Range | 10–36 VDC |
| Color | Light Grey |
| Input Channels | 4 Analog Inputs, 2 Digital Inputs |
| Output Channels | 2 Analog Outputs, 2 Relay Outputs |
| Communication Interfaces | Modbus RTU optional |
| Operating Temperature | -20°C – 70°C |
| Storage Temperature | -40°C – 85°C |
| Relative Humidity | 5% – 95%, non-condensing |
| Protection / Waterproof Rating | IP54 (dust and splash protected) |
| Mounting | Panel mount / DIN rail optional |
| Standards Compliance | IEC 60947-5-1, UL 508 |
