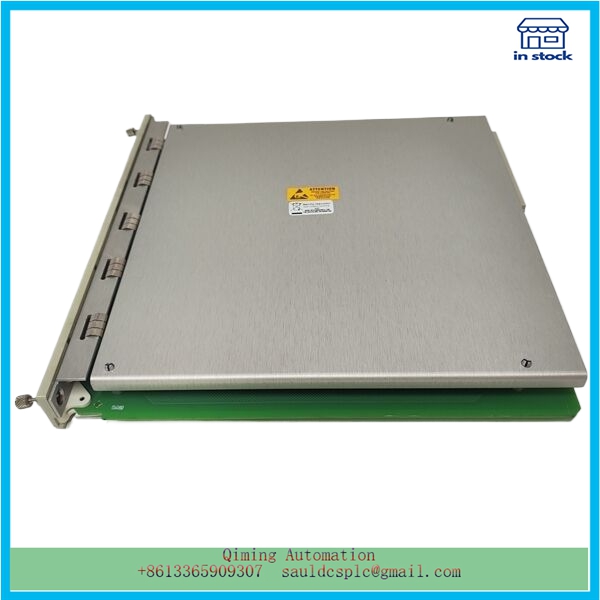

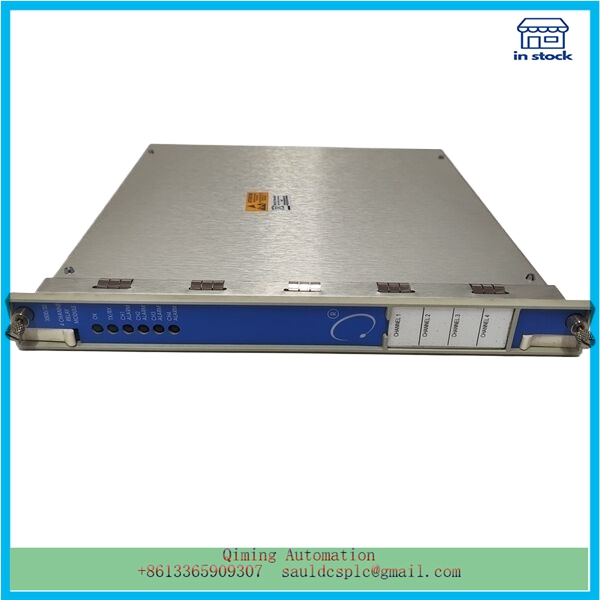

📘 BENTLY 3500-32 125712-01 — Datasheet

Parameter	Specification
Model	3500-32 125712-01
Product Type	16-Channel Relay Module
Country of Origin	USA
Dimensions (W x H x D)	241 mm × 24 mm × 241 mm
Weight	Approx. 0.45 kg
Power Consumption	< 7 W
Operating Voltage	18–36 VDC
Color	Green front panel with black housing
Mounting	3500 Rack Slot installation
Installation Size	Standard 3500 rack module width (1 slot)
Protection / Water Resistance	IP20 (indoor use only)
Relay Outputs	16 relay channels
Relay Contact Rating	5 A @ 30 VDC / 5 A @ 250 VAC resistive load
Response Time	< 20 ms
Operating Temperature	0°C to +65°C
Storage Temperature	-40°C to +85°C
Humidity	5% – 95% non-condensing
Housing Material	Industrial-grade coated PCB with aluminum faceplate
Certification	CE, UL, CSA
