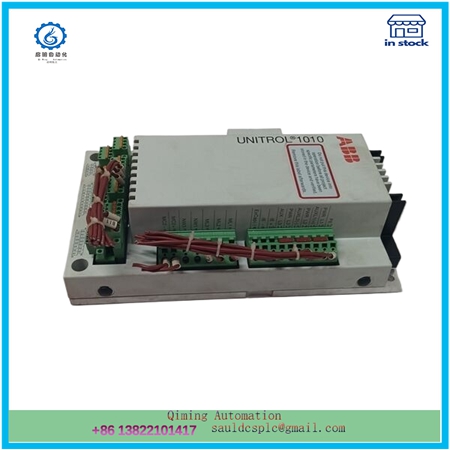

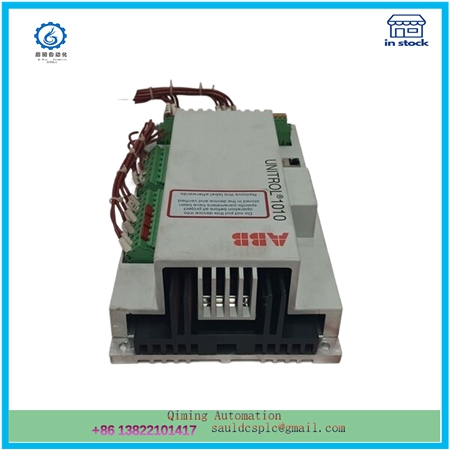

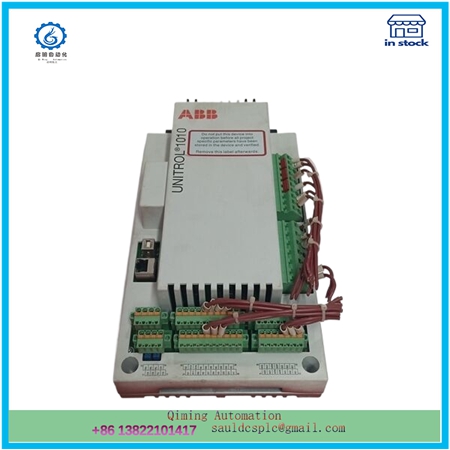

📘 ABB UNIROL1010 3BHE035301R0001 — Datasheet

Parameter	Specification
Model	UNIROL1010
Part Number	3BHE035301R0001
Product Type	Control Board / Drive Control Unit
Supply Voltage	24 V DC nominal
Power Consumption	< 15 W
Communication Interfaces	CAN, Serial, Optical link
Supported Drives	ABB ACS600, ACS800, and compatible systems
Control Functions	Speed, Torque, and Position regulation
I/O Ports	Digital and Analog configurable inputs/outputs
Processor	Industrial-grade microprocessor with DSP
Memory	Program and data memory integrated
Operating Temperature	0°C to +55°C
Storage Temperature	-25°C to +70°C
Humidity	5% – 95% non-condensing
Cooling	Convection / Forced air (system dependent)
Mounting	Rack / Module slot
Dimensions	Compact form, standard ABB control board size
Weight	Approx. 0.5 kg
Protection	Overvoltage, Undervoltage, Short-circuit, Thermal
Certification	CE, RoHS, Industrial Grade
