Description
| Parameter Category | Specification |
|---|---|

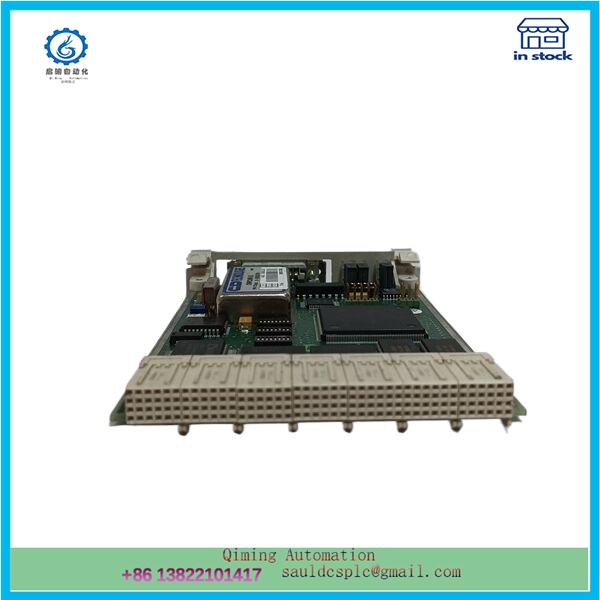

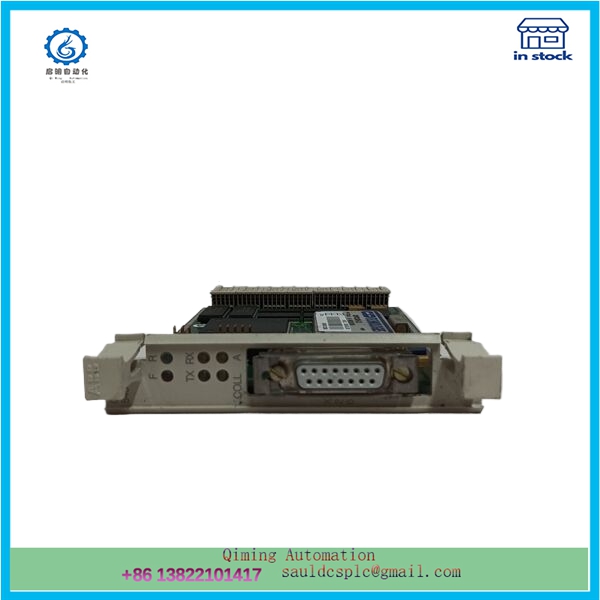

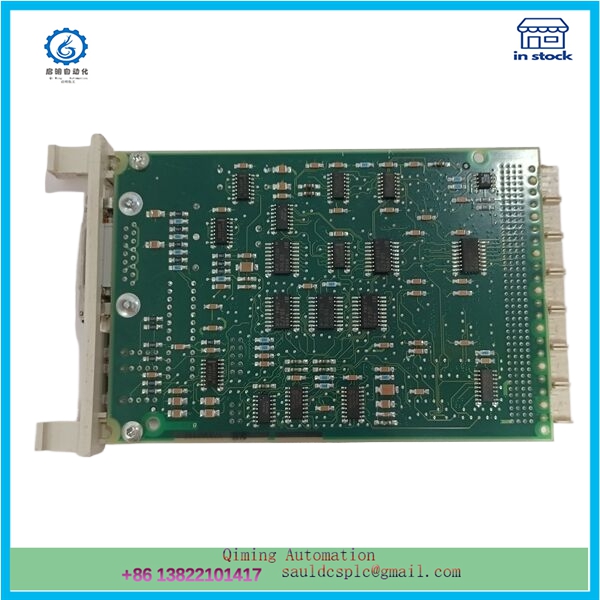

| Model | ABB CI543 |
| Part Number | 3BSE010699R1 |
| Device Type | Control Interface Module |
| Origin / Made In | Sweden |
| Dimensions (HxWxD) | 160 x 80 x 60 mm |
| Installation Dimensions | Panel cutout: 150 x 75 mm |
| Weight | 0.65 kg |
| Power Supply | 24 VDC |
| Power Consumption | 5 W |
| Operating Voltage Range | 20–30 VDC |
| Color | Light Grey |
| Display / Indicators | LED status indicators |
| Input/Output Channels | 8 Digital Inputs, 4 Relay Outputs |
| Communication Interfaces | Profibus DP, Modbus optional |
| Operating Temperature | -20°C – 60°C |
| Storage Temperature | -40°C – 70°C |
| Relative Humidity | 5% – 95%, non-condensing |
| Protection / Waterproof Rating | IP54 (dust and splash protected) |
| Mounting | Panel mount |
| Standards Compliance | IEC 60947-5-1, IEC 61131 |
