Here is a comprehensive overview of the RS-FS-9001 Flame Sensor by GE Reuter-Stokes, including its technical specifications, industrial applications, and related models:
🔧 Product Overview

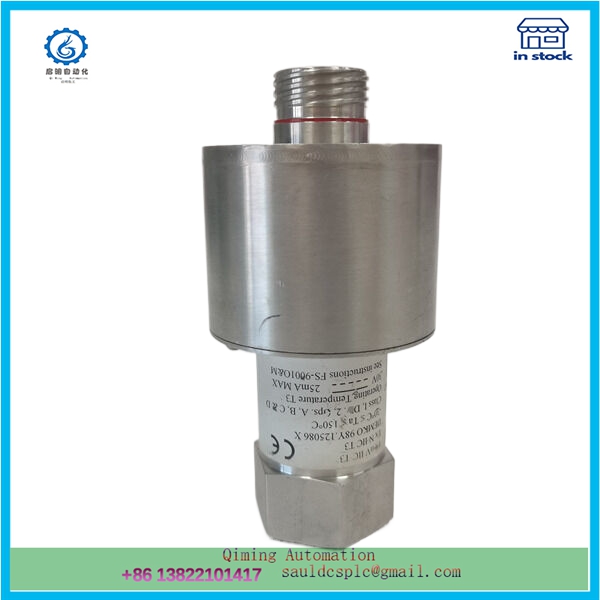

The RS-FS-9001 is a high-performance UV flame sensor designed for critical flame detection in industrial combustion systems, particularly in gas turbines. Utilizing Silicon Carbide (SiC) photodiode technology, it offers enhanced sensitivity and durability, making it suitable for environments with high temperatures and harsh conditions.
📊 Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer | GE Reuter-Stokes (Baker Hughes) |
| Model Number | RS-FS-9001 |
| Sensor Type | UV Flame Sensor (SiC Photodiode) |
| Output Signal | 4–20 mA Analog |
| Power Supply | 12–30 VDC (Nominal 24 VDC) |
| Response Time | ≤25 milliseconds |
| Sensitivity | >5 mA at 1×10¹⁰ photons/in²/sec @ 310 nm |
| Operating Temperature | Up to 177°C (Sensor), 55°C (Amplifier) |
| Housing Material | AISI 316 Stainless Steel |
| Connector Type | MIL-C-38999 Series III, Size 15 (5-pin) |
| Certifications | ATEX, IECEx, CE, Class I Division 2, Zone 2 |
| Mounting | 3/4 NPT Female |
| Warranty | 12 months |
🛠️ Key Features
- High Sensitivity: Detects low-intensity flames, enhancing safety in low-emission combustion systems.
- Rapid Response: Fast detection with a response time of less than 25 milliseconds.
- Robust Design: Built to withstand high temperatures and harsh industrial environments.
- Energy Efficient: Operates on a low-power 4–20 mA current loop.
- Long Operational Life: Designed for extended service life with minimal maintenance.
🏭 Industrial Applications
The RS-FS-9001 is widely used in industries where reliable flame detection is crucial, including:
- Gas Turbines: Ensures safe and efficient operation by detecting flame presence and stability.
- Power Generation: Monitors combustion processes to optimize energy production.
- Petrochemical Plants: Detects flames in reactors and furnaces to prevent hazards.
- Industrial Boilers: Ensures continuous operation by monitoring flame conditions.
🔗 Recommended Similar Products
For applications requiring alternative or supplementary flame detection solutions, consider the following models:
| Model | Description | Link |
|---|---|---|
| RS-FS-9004 | Advanced UV flame sensor with enhanced features | View Product |
| RS-FS-9006 | Compact flame sensor for confined spaces | View Product |
| RS-FS-9010 | High-temperature resistant flame sensor | View Product |
| RS-FS-9020 | Dual-sensor system for redundant detection | View Product |
| RS-FS-9030 | Multi-fuel compatible flame sensor | View Product |
📌 Conclusion
The RS-FS-9001 Flame Sensor by GE Reuter-Stokes is a reliable and efficient solution for flame detection in demanding industrial applications. Its advanced features, robust design, and compliance with international safety standards make it a preferred choice for ensuring operational safety and efficiency in combustion systems.
If you require further information or assistance in selecting the appropriate flame detection solution for your specific needs, feel free to reach out.
