Here is a detailed overview of the Hirschmann MM20-Z6Z6Z6Z6EAHH media module, tailored to your specifications:
🔌 Hirschmann MM20-Z6Z6Z6Z6EAHH – Product Overview

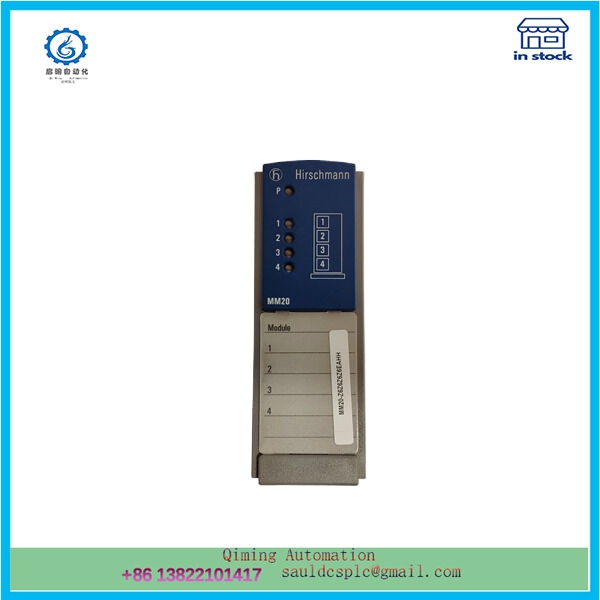

The Hirschmann MM20-Z6Z6Z6Z6EAHH is a high-performance 4-port Fast Ethernet media module designed for integration into Hirschmann’s MS20 and MS30 series modular industrial Ethernet switches. This module facilitates seamless conversion between copper and fiber optic media, ensuring reliable data transmission in demanding industrial environments.
Key Features:
- Modular Design: Compatible with Hirschmann’s MS20 and MS30 series switches, allowing for flexible network configurations.
- 4 SFP Slots: Supports up to four Fast Ethernet SFP transceivers, enabling customization of fiber optic connections.
- Redundant Power Inputs: Equipped with dual 24V DC inputs to ensure continuous operation.
- Hot-Swappable: Allows for replacement without disrupting network operations, minimizing downtime.
- Industrial-Grade Reliability: Built to withstand harsh conditions, suitable for industrial automation and control systems.
🛠️ Technical Specifications
| Parameter | Specification | Unit |
|---|---|---|
| Model | MM20-Z6Z6Z6Z6EAHH | – |
| Ports | 4 × SFP Slots | – |
| Media Type | Copper / Fiber Optic | – |
| Power Supply | Dual 24V DC Inputs | V |
| Power Consumption | Approximately 4 W | W |
| Mounting | Backplane (MS20/MS30 Series) | – |
| Operating Temperature | 0°C to 60°C | °C |
| Storage Temperature | -40°C to 70°C | °C |
| Humidity Range | 10% to 95% (non-condensing) | % |
| Dimensions (W × H × D) | 38 mm × 134 mm × 118 mm | mm |
| Weight | Approximately 0.65 kg | kg |
| Protection Class | IP20 | – |
🌐 Industrial Applications
The MM20-Z6Z6Z6Z6EAHH module is ideal for applications requiring robust and flexible network solutions, such as:
- Industrial Automation: Connecting programmable logic controllers (PLCs), sensors, and actuators in a factory setting.
- Transportation Systems: Ensuring reliable communication in railways, subways, and other transit networks.
- Energy Management: Integrating with smart grid systems for efficient power distribution.
- Building Automation: Facilitating communication between HVAC systems, lighting, and security devices.
Recent advancements in industrial networking emphasize the importance of modular and scalable solutions. Modules like the MM20-Z6Z6Z6Z6EAHH contribute to the development of intelligent infrastructure by providing adaptable and resilient network connectivity.
🔗 Related Products
| Model | Description | Link |
|---|---|---|
| MM20-Z6Z6Z6Z6SAHH | 6-Port SFP Media Module | More Info |
| MM20-Z6Z6Z6Z6EA | 4-Port SFP Media Module | More Info |
| MM20-Z6Z6Z6Z6SA | 6-Port SFP Media Module | More Info |
| MM20-Z6Z6Z6Z6E | 4-Port SFP Media Module | More Info |
| MM20-Z6Z6Z6Z6S | 4-Port SFP Media Module | More Info |
The Hirschmann MM20-Z6Z6Z6Z6EAHH media module stands out as a reliable and versatile component for industrial networking solutions. Its modular design, combined with features like hot-swappability and redundant power inputs, ensures minimal downtime and adaptability to various network configurations. Whether you’re upgrading an existing system or building a new infrastructure, this module provides the flexibility and performance required for modern industrial applications.
If you require further information or assistance with integration, feel free to reach out.
