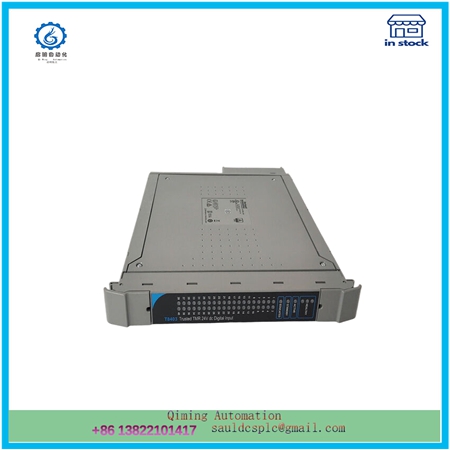

📑 ICS TRIPLEX T8403CX Safety and Control System Module
The ICS TRIPLEX T8403CX is an advanced safety and control system module designed for high-reliability applications in power generation and industrial automation. Engineered for real-time processing, redundant operation, and critical event monitoring, it ensures continuous protection and control of essential machinery. The module is part of the Triplex T8400 series, known for robust fault tolerance, precise decision-making, and seamless integration with ICS safety systems.
⚙️ Key Features
- Triple Modular Redundancy (TMR) – Ensures fail-safe operation by executing parallel computations across three processors and voting on results.
- High-Speed Processing – Provides rapid response to critical events for protection and control of turbines, generators, and other machinery.
- Extensive I/O Capability – Supports digital, analog, and specialty I/O for versatile system integration.
- Redundant Communication – Dual communication channels for Ethernet and serial connections improve system reliability.
- Built-in Diagnostics – Continuous monitoring of module and system status to quickly identify faults.
- Scalable Architecture – Easily integrates with existing Triplex T8400 systems and expansions for large plant applications.
📊 Technical Parameters (Datasheet)
| Parameter | Description |
|---|---|
| Model Number | T8403CX |
| System Type | Triplex Safety and Control System |
| Function | Processor and control module for T8400 series |
| Redundancy | Triple Modular Redundant (TMR) architecture |
| I/O Support | Digital, Analog, and specialty inputs/outputs |
| Communication Ports | Dual Ethernet, RS-232/RS-485 serial |
| Power Supply | 24 VDC nominal from system backplane |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Environmental Protection | IP20 standard, rack-mounted |
| Rack Compatibility | T8400 series standard rack slots |
| Weight | Approx. 1.2 kg |
| Certifications | CE, UL, CSA, ISO 9001 |
🔧 Installation and Maintenance
- Installation: Mount the T8403CX module into designated Triplex T8400 rack slots. Ensure all backplane connectors are fully engaged.
- Configuration: Program using ICS configuration software to define logic functions, input/output mapping, and voting parameters.
- Wiring: Connect field I/O to designated terminals using shielded cabling for signal integrity.
- Maintenance: Monitor LED indicators and diagnostics reports. Perform routine checks and firmware updates as recommended. Replace only with certified ICS modules to maintain system reliability.
- Environmental Considerations: Operate within temperature and humidity specifications. Protect from excessive vibration, dust, or corrosive exposure.
🏭 Typical Applications
- Gas and steam turbine protection systems
- Generator and power plant automation
- Nuclear and fossil-fuel plant critical control systems
- Industrial safety shutdown and emergency trip systems
- High-reliability process control in oil & gas facilities
🌐 Useful Links
- Explore ICS Triplex solutions: stardcsplc.com
- Find compatible T8400 modules: stardcsplc.com
📌 Recommended Similar Models
| Model | Description | Application |
|---|---|---|
| T8403C | Standard processor module | Triplex T8400 series control applications |
| T8410CX | Analog input/output module | High-precision analog signal monitoring |
| T8430CX | Digital I/O module | Safety-critical digital signal management |
| T8420CX | Communication module | Redundant Ethernet and serial connections |
| T8401CX | System rack module | Houses processors and I/O modules in T8400 system |
The T8403CX module combines robust redundancy, fast processing, and comprehensive diagnostics, making it an ideal solution for mission-critical control and protection systems requiring the highest reliability and fault-tolerant performance.
